LabStore - Part 5 - Building an Object Store in Go: CLI - Command Line Interface

Table of Contents

Summary
#

Learn how to build a CLI for your monorepo, with cobra and the charm stack. With this blog post and video, you will easily learn the basics—and beyond—on how to use cobra for building a CLI, from persistent pre runs that propagate, to command annotations for custom control, or handling your own errors manually. We’ll also teach you how to manage multiple services, on separate ports, within a single serve command, how to manage client-side credentials easily, and how to design a basic TUI, including color palettes and styling with lipgloss, as well as custom components with bubbletea. Finally, you’ll learn how easy it is to embed a static site into a Go binary so that you can serve your own web UI. One binary to rule them all!

Follow this series with IllumiKnow Labs, and let’s see where this journey takes us. Hopefully you’ll learn a lot along the way!

Taming the CLI
#

Creating a command line interface is not, by itself, a hard task. And it’s not any different with Go. In fact, this is quite straightforward when using Cobra.

In this blog post, we describe our approach to accommodating the CLI for LabStore:

Changes to the codebase, including to the CI workflow;
Basics of Cobra for CLI design;
How to cleanly manage multiple HTTP services in a single serve command;
How generics and type constraints helped simplify a few CLI display tasks;
The new credentials.yaml file, meant for direct user editing;
A light introduction to TUI design, focusing on styling and the progress bar component;
File embedding in Go, and how to serve a web UI as a static site, directly from Go, via http.FileServer.

Changes to the Codebase
#

Centralizing Commands
#

We started from two main Go projects, backend and cli, we well as a secondary shared directory to drop any additional subprojects, required by other projects in our monorepo. Our backend project already provided its own cmd/labstore-server implemented in Cobra, but it quickly became clear that this should be centralized in cli. Initially, we were considering importing cmd/labstore-server/serve.go directly from cli, but this would essentially make the labstore-server binary irrelevant, so we opted to move all commands into cli.

We dropped backend/cmd/labstore-server and consolidated its commands into cli/cmd/labstore instead, thus turning backend into a library, which we renamed to server, for clarity.

We also started a new client project, a library to handle S3 and IAM requests. At first, we dropped it into shared/client, but we quickly realized this should be a top-level project, so it now lives in the root of the repo as client.

Finally, because we had to reuse a lot of code from server (or, previously, backend), we ended up having to do some refactoring, so that this could be exposed under server/pkg. This included types and errors, as well as most of the authentication logic and other common components, like logging or helpers. In the future, we’ll most likely refactor some of these into subprojects, under shared, as well as split the helpers into semantically clearer packages.

For now, this is what we expose from server:

server/pkg/
├── auth
├── config
├── constants
├── errs
├── helper
├── iam
├── logger
├── profiler
├── router
├── security
└── types

Using `go work` for Development
#

Our individual projects—server, client, and cli—all have their own go.mod—but we don’t use a common go.mod at the repo root, and we also do not release each project individually. This is perhaps adding needless complexity, and something to revise later. Regardless, we needed a way for projects to import from each other.

The legacy approach was to use replace inside each go.mod file, like so:

module github.com/IllumiKnowLabs/labstore/cli

go 1.25.5

require (
    github.com/IllumiKnowLabs/labstore/server v0.0.0
)

replace github.com/IllumiKnowLabs/labstore/server => ../server

However, there is a cleaner, more modern approach, using go.work. In the repo root, run:

go work init ./server ./client ./cli
go work sync

If you need to add another project later, you can use something like:

go work use ./share/logging
go work sync

Running go work sync will produce a go.work.sum, ensuring that workspace dependencies are consistent across all projects. Both files can be committed to your repo to ensure reproducibility, as well as for CI workflows.

Building and CI
#

Linting with Pre-Commit
#

Since we moved to a monorepo with cross-project dependencies, we also had to update our CI workflows, making sure that our GitHub Actions for linting and testing still worked as expected.

Since we now have three projects for linting, we updated our .pre-commit-config.yaml as follows:

repos:
  - repo: https://github.com/golangci/golangci-lint
    rev: v2.6.2
    hooks:
      - id: golangci-lint
        name: golangci-lint (server)
		files: ^server/
        entry: bash -c 'golangci-lint run ./server/...'
        language: system
        pass_filenames: false
      - id: golangci-lint
        name: golangci-lint (client)
		files: ^client/
        entry: bash -c 'golangci-lint run ./client/...'
        language: system
        pass_filenames: false
      - id: golangci-lint
        name: golangci-lint (cli)
		files: ^cli/
        entry: bash -c 'golangci-lint run ./cli/...'
        language: system
        pass_filenames: false

We use three similar golangci-lint entries (one per project), where we dropped types: [go], replacing it with pass_filenames: false, as we explicitly pass the file arguments to the linter. Here, we simply use the same prefixes as the ones defined for go.work. For example, ./server/... will cover all Go files under the server project.

If we, instead, tried to use a single entry with ./..., then we would get the following error:

ERRO [linters_context] typechecking error: pattern ./...: directory prefix . does not contain modules listed in go.work or their selected dependencies
0 issues.

When using go.work, make sure that linting is done for each individual module directory.

GitHub Actions
#

We defined two workflows, one for linting, where we call pre-commit, and another one for testing, where we call go test -v for each module.

Both lint.yml and test.yml, which exist under .github/workflows, call a common composite action defined under .github/actions/setup, which will setup go and node, and build the web project, copying web/build to server/pkg/router/assets, where it lives, to be embedded during server building.

This is how the jobs entry for lint.yml looks like:

jobs:
  pre-commit:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v6

      - name: setup
        uses: ./.github/actions/setup

      - name: golangci-lint
        uses: golangci/golangci-lint-action@v9
        with:
          version: v2.8
          install-only: true

      - name: run pre-commit
        uses: pre-commit/action@v3.0.1
        with:
          extra_args: --all-files

We install golangci-lint without running it (install-only: true) and then we call pre-commit to run it. This way, we share the same linting code for CI and git commit.

This is how the jobs entry for test.yml looks like:

jobs:
  go-tests:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v6

      - name: setup
        uses: ./.github/actions/setup

      - name: go test (server)
        run: go test -v ./server/...

      - name: go test (client)
        run: go test -v ./client/...

      - name: go test (cli)
        run: go test -v ./cli/...

In here, we have to make sure we reference the modules defined in go.work, so we wouldn’t be able to run go test -v ./... from the repo root.

Makefile
#

Finally, we had to adapt our Makefile to make sure our cli project was the only Go project being built, and that it depended on web. We also had to sync the static site files built for web with the assets directory on our server module.

These are the relevant targets to achieve what we just described:

$(BIN_DIR):
	mkdir -p $(BIN_DIR)

WEB_SRCS := $(shell find $(WEB_SRC_DIRS) -type f)

$(WEB_BUILD_DIR): $(WEB_SRCS)
	cd $(WEB_DIR) && npm ci
	cd $(WEB_DIR) && npm run build

ASSETS_SRCS := $(shell find $(WEB_BUILD_DIR) -type f)

$(ASSETS_DIR): $(ASSETS_SRCS)
	rsync -a --delete web/build/ $(ASSETS_DIR)/

CLI_SRCS = $(shell find $(CLI_DIR) $(SERVER_DIR) $(CLIENT_DIR) -name '*.go')

$(CLI_CMD): $(CLI_SRCS) | $(BIN_DIR)
	cd $(CLI_DIR) && go build -o ../$(CLI_CMD) ./cmd/labstore

assets: web $(ASSETS_DIR)

cli: assets $(CLI_CMD)

web: $(WEB_BUILD_DIR)

build: cli

Running make will result in the targets web, assets, and cli being run, building the node project, rsyncing the output to the assets directory under server, and building cli/cmd/labstore .

Using Cobra to Produce Commands
#

The entry point for the Cobra library is a root command. Commands can receive a context, and handle a return error. We take advantage of both options. This how our main package looks like under cli/cmd/labstore.

First, we enable the option to run all persistent pre-run and post-run from parents, as opposed to simply overriding them:

func init() {
	cobra.EnableTraverseRunHooks = true
}

This means that anything defined on a persistent pre-run will always be run downstream.

Then, we create a root command using our own NewRootCmd(), and pass it a context that captures interrupt signals. This will help us control user interruptions, i.e., ctrl+c or SIGINT:

func main() {
	rootCmd := NewRootCmd()

	ctx, stop := signal.NotifyContext(
		context.Background(),
		os.Interrupt,
	)
	defer stop()

	if err := rootCmd.ExecuteContext(ctx); err != nil {
		// ...
	}
}

We handle errors manually, so we set the following options for the root command:

cmd.SilenceErrors = true
cmd.SilenceUsage = true

We then detect errs.RuntimeError, which we use to signal that an error has already been handled upstream, and only print the error and usage for any other errors (default behavior):

func main() {
	// ...

	if err := rootCmd.ExecuteContext(ctx); err != nil {
		var runtimeError *errs.RuntimeError
		if errors.As(err, &runtimeError) {
			os.Exit(2)
		}

		cmd, _, cmdErr := rootCmd.Find(os.Args[1:])
		if cmdErr == nil {
			cmd.PrintErrln(err)
			helper.CheckFatal(cmd.Usage())
			os.Exit(1)
		}
	}
}

Root Command
#

Our root command is defined in the NewRootCmd() constructor. First, we create a *cobra.Command instance:

var cmd = &cobra.Command{
	Use:   strings.ToLower(constants.Name),
	Short: fmt.Sprintf("%s, by %s", constants.Name,
		constants.Author),
	Long:  fmt.Sprintf("%s - %s, by %s", constants.Name,
		constants.Description, constants.Author),

	PersistentPreRun: func(cmd *cobra.Command, args []string) {
		baseCmd := topLevelCommand(cmd)
		if baseCmd.Name() == "completion" {
			return
		}

		if cmd.Annotations["show-default-secret"] == "yes" {
			config.DisplayDefaultAdminSecretKey = true
		}

		if cmd.Annotations["mode"] == "daemon" {
			slog.SetDefault(slog.New(
				slog.NewTextHandler(io.Discard, nil)))
			config.Load(cmd)
			return
		}

		bootstrap(cmd)
	},
}

Here, Use will represent the command name (labstore for the root command, same as the binary name).

Positional Arguments
#

For subcommands, Use can also contain the expected positional arguments, e.g. labstore iam users create requires a USERNAME:

func NewUsersCreateCmd() *cobra.Command {
	var cmd = &cobra.Command{
		Use:   "create USERNAME",
		Short: "Create an IAM user",
		Args:  cobra.MinimumNArgs(1),
		RunE: func(cmd *cobra.Command, args []string) error {
			handler := cmd.Context().Value(handlerKeyCtx).(*handlers.IAMHandler)
			return handler.CreateUser(args[0])
		},
	}

	return cmd
}

Notice that Args is set to cobra.MinimumNArgs(1), to ensure USERNAME will be set.

We also set a Short description, displayed when listing commands, and we can set an optional Long description, if we want to display further details when showing the help for that specific command.

Run Hooks
#

Then, we can make use of several run methods:

PersistentPreRun / PersistentPreRunE
PreRun / PreRunE
Run / RunE
PostRun / PostRunE
PersistentPostRun / PersistentPostRunE

For the persistent variants, depending on whether cobra.EnableTraverseRunHooks is true or false, we’ll get different behaviors. For true, persistent hooks will trigger in-order from outer to inner level (pre) or from inner to outer level (post). For false, the inner-most definition will take precedence, in overridable fashion.

For the E suffix variants, our function must return error. This is automatically handled by Cobra, although, like we stated above, we disabled this default behavior and handled it ourselves.

Annotations
#

We can also find a few annotation checks. Each command can store a map[string]string containing app-specific metadata to help handle the flow. For example, our serve command is configured as follows, with the show-default-secret annotation:

var cmd = &cobra.Command{
	Use:   "serve",
	Short: "Run server",
	Long:  "Run server for S3, IAM, and admin services",
	Run: func(cmd *cobra.Command, args []string) {
		adminPass := cmd.Flags().Lookup("admin-pass")
		if adminPass != nil && adminPass.Changed {
			slog.Warn("setting admin pass via the command line is insecure")
		}

		router.Start()
	},
	Annotations: map[string]string{
		"show-default-secret": "yes",
	},
}

This annotation is then handled on our root command, determining whether to display a default admin secret key, when it hasn’t been specified by the user elsewhere on the config (this will be handled internally by the config package):

if cmd.Annotations["show-default-secret"] == "yes" {
	config.DisplayDefaultAdminSecretKey = true
}

Flags and Subcommands
#

Once the cmd is instanced in the NewRootCmd() constructor, then we can add flags or persistent flags (i.e., common to all subcommands), as well as the subcommands, each having a similar constructor:

cmd.SilenceErrors = true
cmd.SilenceUsage = true

cmd.PersistentFlags().Bool("debug", false, "Set debug level for logging")
cmd.PersistentFlags().Bool("pprof", false, "Enable profiler")
cmd.PersistentFlags().String("pprof-host", "localhost", "Profiler host")
cmd.PersistentFlags().Int("pprof-port", 6060, "Profiler port")

cmd.AddCommand(NewServeCmd())
cmd.AddCommand(NewS3Cmd())
cmd.AddCommand(NewIAMCmd())
cmd.AddCommand(NewAdminCmd())
cmd.AddCommand(NewTUICmd())
AddDaemonCommands(cmd)

Help Message
#

This is what running the labstore command without any options will print:

LabStore - An S3-Compatible Object Store, by IllumiKnow Labs

Usage:
  labstore [command]

Available Commands:
  admin       Admin client
  completion  Generate the autocompletion script for the specified shell
  help        Help about any command
  iam         IAM client, designed for learning
  restart     Restart LabStore server
  s3          S3 client, designed for learning
  serve       Run server
  start       Start LabStore server
  status      Check if LabStore server is running
  stop        Stop LabStore server
  tui         TUI and helper commands

Flags:
      --debug               Set debug level for logging
  -h, --help                help for labstore
      --pprof               Enable profiler
      --pprof-host string   Profiler host (default "localhost")
      --pprof-port int      Profiler port (default 6060)

Use "labstore [command] --help" for more information about a command.

Here’s a semantically organized listing of the supported commands as well—something that would be nice do in Cobra as well, without having to create subcommands, for improved readability, like just does with groups:

Server
- server – used to start the services for the LabStore server (admin, S3, IAM, and web UI).
Clients
- admin – admin service client (does nothing at this time).
- iam – IAM client designed for learning, not usability (maps one-to-one to the IAM service implementation).
- s3 – S3 client designed for learning, not usability (maps one-to-one to the S3 service implementation).
Daemon – convenience commands for a better UX when testing LabStore, so you can manage the server without having to deploy our Docker container, or setup your own systemd service.
- start
- stop
- restart
- status
Helpers
- tui palette – as of now, it displays the color scheme for our palette and, in the future, its parent command will be the home for our TUI as well.
- completion – automatic shell completion scripts provided by Cobra (supports bash, zsh, fish, and PowerShell).
- help – go-style help and usage messages.

Shell Autocompletion
#

As shown in the help, in the future, after you go install LabStore, you’ll also be able to setup autocompletion for your shell. For example, for fish, you just add this to your ~/.config/fish/config.fish:

labstore completion fish | source -

With cobra, you get autocompletion for your CLI, out-of-the-box, at a zero-cost.

Managing Multiple HTTP Services
#

When we run labstore serve, we start multiple http.Server instances concurrently using goroutines. In order to manage this, we define the following type:

type ServerDescriptor struct {
	Name    string
	Server  *http.Server
	Healthy atomic.Bool
}

The Name (e.g., S3-Compatible API, or IAM) will be used to display a message letting the user know where to connect for each service:

🌐 S3-Compatible API listening on http://0.0.0.0:6789
🌐 IAM listening on http://0.0.0.0:6788
🌐 Web UI listening on http://0.0.0.0:6790
🌐 Admin API listening on http://0.0.0.0:6787

The URL will be extracted from Server.Addr. Once the server is started, its Healthy status will be set to true. This will be monitored by our admin service, which will return HTTP 200 (OK) when all services are healthy, or HTTP 503 (Service Unavailable) when any of the S3, IAM, or Web UI services are down.

We instance each service using values from config, e.g.:

webServerDescriptor := NewWebServerDescriptor(
	config.App.Web.Address.Host,
	config.App.Web.Address.Port,
)

We then handle the lifecycle under router.Start() as follows:

var wg sync.WaitGroup
errCh := make(chan error, len(serverDescriptors))

for _, sd := range serverDescriptors {
	wg.Add(1)
	go runServer(sd, &wg, errCh)
	sd.Healthy.Store(true)
}

go shutdownServers(ctx, serverDescriptors)
go waitAndClose(errCh, &wg)

for err := range errCh {
	if err != nil {
		slog.Error("server error", "err", err)
	}
}

slog.Info("all servers shut down cleanly")

We monitor the error channel errCh, shared among all services. Each service is started in a goroutine using go runServer(...) and setting its healthy status to true—if an error occurs or it terminates, it will be set to false. Errors are sent to errCh, which also blocks the flow until completion:

for err := range errCh {
	if err != nil {
		slog.Error("server error", "err", err)
	}
}

The shutdownServers goroutine will immediately block until the context is done:

func shutdownServers(
	ctx context.Context,
	serverDescriptors []*ServerDescriptor,
) {
	<-ctx.Done()
	slog.Info("shutdown signal received")

	shutdownCtx, cancel := context.WithTimeout(
		context.Background(),
		5*time.Second,
	)
	defer cancel()

	for i := len(serverDescriptors) - 1; i >= 0; i-- {
		s := serverDescriptors[i]
		slog.Info("shutting down server", "addr", s.Server.Addr)
		_ = s.Server.Shutdown(shutdownCtx)
	}
}

And the context is instanced in router.Start(), as follows, to listen for SIGINT or SIGTERM:

ctx, stop := signal.NotifyContext(
	context.Background(),
	os.Interrupt,
	syscall.SIGTERM,
)
defer stop()

Again, notice that runServer, shutdownServers, and waitAndClose are all started concurrently, but shutdownServers will immediately block due to <- ctx.Done(), which only resumes on interruption (SIGINT or SIGTERM). This is how simple and powerful channels are in Go!

Once each server is shutdown, runServer will return and call wg.Done():

func runServer(
	sd *ServerDescriptor,
	wg *sync.WaitGroup,
	errCh chan<- error,
) {
	defer wg.Done()

	fmt.Printf(
		"🌐 %s listening on http://%s\n",
		sd.Name,
		sd.Server.Addr,
	)

	err := sd.Server.ListenAndServe()
	if err != nil && err != http.ErrServerClosed {
		sd.Healthy.Store(false)
		errCh <- err
	}
}

Finally, we wait for all goroutines to be done, and close errCh to exit:

func waitAndClose(errCh chan error, wg *sync.WaitGroup) {
	wg.Wait()
	close(errCh)
}

Server errors are printed as they arrive, but the whole program is blocked until the errCh is closed, at which time it prints a log message:

Jan 23 17:09:46.263 INF all servers shut down cleanly

Managing Client-Side Credentials
#

Since we’re implementing an S3 client, we’ll need a way to manage client-side credentials. This is usually done using some kind of config file. As we know, the aws CLI tool uses the concept of profile. We adopted a lightweight approach of this same idea.

We questioned whether we should:

Extend our config file format to include client configs (i.e., a top-level client entry), with overrides via CLI args and env vars.
Same as previous, with a config file, but without overrides.
Create a simpler YAML file for credentials.

We ended up going with option 3, creating a ~/.config/labstore/credentials.yml, automatically initialized when not found, and based on profiles. Something like this, but empty by default:

default_profile: default
profiles:
  default:
    access_key: admin
    secret_key: adminadmin

After editing this file, the user can then call authenticated commands without specifying a profile, in which case the profile set in default_profile will be used, unless overridden by --profile. Since credentials are prone to fail due to server or client side config issues, we decided that having a single source of truth would reduce any potential debugging there.

First Look at TUI Design
#

Our next release will focus on the TUI, but, for the CLI, we already used a few TUI tricks based on lipgloss and bubbletea, from the charm stack.

We used lipgloss to create CLI styles—color scheme, width, alignment, margin, padding,setting bold, etc.— and we used bubbletea for its progress bar component, that we needed to track uploads (PutObject) and downloads (GetObject).

Color Palette
#

Our color palette was defined using a custom type containing multiple lipgloss.Color entries:

type Palette struct {
	TextPrimary  lipgloss.Color
	TextMuted    lipgloss.Color
	TextInverted lipgloss.Color

	Surface      lipgloss.Color
	SurfaceAlt   lipgloss.Color
	SurfaceHover lipgloss.Color

	Accent      lipgloss.Color
	AccentMuted lipgloss.Color

	Success lipgloss.Color
	Warning lipgloss.Color
	Error   lipgloss.Color

	Border lipgloss.Color
}

The actual final color will depend on the terminal you’re using, and whether it supports 16-colors, 256-colors, or true color, but lipgloss will handle the fallback for you transparently—it might not look good, if you don’t test it thoroughly, but it will work.

We then define two variables of type Palette, named DefaultPalette and ActivePalette. At this time, both variables are the same, but, in the future, we can easily extend this to support external color scheme loading (e.g., load an external file format to override DefaultPalette entries).

Styling
#

A common styling strategy with lipgloss is to instance lipgloss.NewStyle() and, using method chaining to set all the required display properties. It looks something like this:

metaLabelStyle := lipgloss.NewStyle().
	Width(20).
	Bold(true).
	Align(lipgloss.Right).
	PaddingRight(1).
	MarginRight(2).
	Background(ActivePalette.Surface).
	Foreground(ActivePalette.TextPrimary).
	Render

If you’re defining the final style, you can simply return Render, like we do, which is the method you call to render a string with the given display options. A few examples in the lipgloss repo use this same strategy, so we generically adopted it. Notice that padding and margin is defined as multiples or columns or lines—if you’re coming from web design, remember that designing for a TUI is more limited due to the constraints of the display support—the terminal, rather than the browser.

Generics and Type Constraints in Go
#

In Go, we often do not need generics (or at least I haven’t), so it’s worth mentioning a use case where generics were helpful. Since we often had to display metadata (i.e., key-value style information), we ended up creating a custom Metadata type, with its own Render method:

type Metadata map[string]Meta

type Meta struct {
	Value  any
	Format func() string
}

We wanted to be able to customize the display of generic strings and numbers, as well as dates (time.Time) and sizes (int64). In particular for numbers, we wanted to accept any of the supported types in Go, which also meant distinguishing from sizes.

We approached this by using generics and the following type constraint:

type Number interface {
	~float32 | ~float64 |
		~int | ~int8 | ~int16 | ~int32 | ~int64 |
		~uint | ~uint8 | ~uint16 | ~uint32 | ~uint64
}

Such an interface can only be used with generics to limit the acceptable types. The tilde means that any type with the same underlying type will match (e.g., based on ~int64, it would accept type MyInt int64).

Then we defined a constructor per type. For example, we defined NewNumber as follows:

func NewNumber[T Number](value T) Meta {
	return Meta{
		Value: value,
		Format: func() string {
			p := message.NewPrinter(language.English)

			switch val := any(value).(type) {
			case float32, float64:
				return p.Sprintf("%.6f", val)
			default:
				return p.Sprintf("%d", val)
			}
		},
	}

This will format numbers with thousands commas, with floats having 6-decimals—anything else will be an integer.

In Metadata.Render we define the styles to use and then iterate over the keys in the map, after sorting them (labels):

for _, label := range labels {
	metaRow := lipgloss.JoinHorizontal(
		lipgloss.Top,
		metaLabelStyle(label),
		MetaValueStyle(metadata[label].Format()),
	)
	rows = append(rows, metaRow)
}

metaView := lipgloss.JoinVertical(
	lipgloss.Left,
	rows...,
)

return metaView + "\n"

As you can see, lipgloss provides a JoinHorizontal, as well as a JoinVertical, that can be quite useful in designing our TUI.

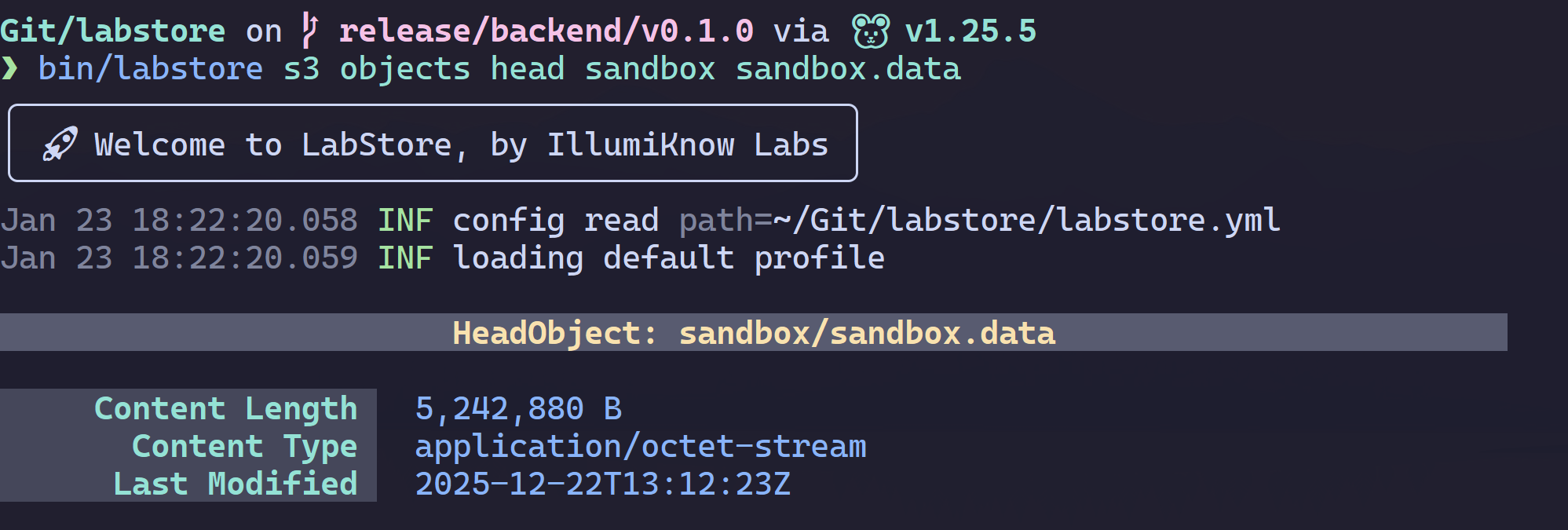

This will render to something like this:

Designing a Progress Bar Component
#

We also implemented a progress bar, in order to track uploads (PutObject) and downloads (GetObject). This was based on the progress-animated example straight from the bubbletea repo, with an optional console output component, to divert the logger to, while bubbletea takes over the CLI.

Since we do not have an actual TUI, and we do not relinquish control to bubbletea completely (i.e., the main program loop is not exclusively running a tea.Program), we needed to take extra care in designing our architecture.

In order to display a bubbletea component, we must first define a type that implements the tea.Model interface, providing Init(), Update(), and View() methods.

This is how our progress bar model looks like:

type ProgressBarModel struct {
	Ctx            context.Context
	Bar            progress.Model
	MaxConsoleSize int
	Debug          bool

	Progress chan client.Progress
	Message  chan string
	done     chan struct{}

	cancel  context.CancelFunc
	program *tea.Program
	width   int
	height  int
	console []string

In Go, as a rule of thumb, always pass the context. Everything, from Cobra to the standard HTTP library, uses a context. Simply passing the context will make it easier to receive interruption or cancellation signals. This is our Ctx.

We define a Bar that uses the bubbles progress.Model component.

We define MaxConsoleSize to determine the maximum number of lines to display at once for our console output—if we hadn’t limited this, the program would progressively slow down, as it had to keep in memory the whole console output and update it every time it called View().

Then we pass Debug, based on the --debug flag from the CLI.

On the next segment, we define channels—Progress will serve to update the current value in the progress bar, while Message will write a message to the console component; done just signals that the progress bar terminated.

The remaining variables are helpers—cancel ensures the context is cancellable, program runs the TUI component, width and height track current terminal dimensions, and console keeps the last MaxConsoleSize messages being displayed.

The two most relevant methods in our progress bar are Update() and Run()—this last one replaces the usual TUI starter on main(). The Init() method only calls Bar.Init(), while the View() method is just regular lipgloss styling, like we’ve seen in the previous sections.

Processing Update Events
#

The Update() method looks like this:

func (m *ProgressBarModel) Update(msg tea.Msg) (tea.Model, tea.Cmd) {
	switch msg := msg.(type) {
	case SomeEvent:
		// handle and produce a tea.Cmd
		return m, cmd

	// ...

	default:
		return m, nil
	}
}

This is our event loop, where we process each event (e.g., SomeEvent, which is not real), and return the model and a tea.Cmd to execute.

Let’s go through each event. First, let’s take a look at how we handle updating the progress bar’s current value:

type progressMsg struct {
	current int
	total   int
}

case progressMsg:
	pct := float64(msg.current) / float64(msg.total)

	if pct >= 1.0 {
		cmd := m.Bar.SetPercent(1.0)
		return m, tea.Sequence(cmd, tea.Quit)
	}

	cmd := m.Bar.SetPercent(pct)
	return m, cmd

This receives the current and total values as integers, and computes the percentage to set the progress bar to. If we reach 100%, then we trigger tea.Quit, as a part of a tea.Sequence of commands, where the first command sets the percentage to 100% before quitting. Otherwise, we just set the percentage.

Secondly, we handle our console messages:

type consoleMsg string

case consoleMsg:
	m.console = append(m.console, string(msg))
	if len(m.console) > m.MaxConsoleSize {
		m.console = m.console[len(m.console)-m.MaxConsoleSize:]
	}
	return m, nil

This is essentially a circular or ring buffer—we delete older messages as we hit the limit set by MaxConsoleSize.

Finally, we handle bubbletea and bubble specific events:

case tea.KeyMsg:
	if msg.Type == tea.KeyCtrlC {
		fmt.Println("SIGINT caught, quitting...")
		return m, tea.Quit
	}
	return m, nil

case progress.FrameMsg:
	progressModel, cmd := m.Bar.Update(msg)
	m.Bar = progressModel.(progress.Model)
	return m, cmd

case tea.WindowSizeMsg:
	m.width, m.height = msg.Width, msg.Height
	m.Bar.Width = min(msg.Width, 80)
	return m, nil

Here, tea.KeyMsg handles key presses—we capture ctrl+c and exit. Then, progress.FrameMsg will handle the animation, triggering at a given frame rate, as opposed to instantly updating, and tea.WindowSizeMsg signals terminal size changes, so we can handle it properly.

Running and Consuming Channels
#

Running our program means starting the tea.Program by calling program.Run(), but also handling channel consumption and program message sending, as well as context cancelling.

The overall structure of Run() looks like this:

func (m *ProgressBarModel) Run() {
	defer close(m.done)

	var wg sync.WaitGroup
	wg.Add(2)

	output := &consoleWriter{ctx: m.Ctx, ch: m.Message}
	revert := logger.Swap(output, logger.WithDebugFlag(m.Debug))

	go func() {
		// consume Progress channel
	}()

	go func() {
		// consume Message channel
	}()

	_, err := m.program.Run()
	m.cancel()
	wg.Wait()
	revert()

	if err != nil {
		slog.Error("progress bar", "err", err)
		return
	}

	slog.Debug("progress bar done")
}

As you can see, we defer the closing of the done channel, so that it is called when the function returns and unblocks any termination routine (like we did for the multiple HTTP services, described in a previous section). We also define a wait group with two tasks, one for each channel consumer (defined in the go func() calls).

Let’s take note of the logger.Swap logic:

output := &consoleWriter{ctx: m.Ctx, ch: m.Message}
revert := logger.Swap(output, logger.WithDebugFlag(m.Debug))

Our logger.Swap method is simple. It will create a new logger, with the given output, and set it as the default, while saving the previous logger, that can be restored by calling revert(). What we’re doing here is diverting the logger into a consoleWriter, which takes a channel—the Message channel is used—and writes messages to that channel instead of stdout or stderr. This is how we produce the console messages you’ve seen us handle in the Update() method above.

We then start a consumer in a goroutine for the Progress and Message channels, and we run the program. Once the program exits, we cancel the context, we wait for each consumer to finish, and we revert the logger.

Channel consumers look similar, but, for the Progress channel, we ensure we consume all remaining messages before releasing:

go func() {
	defer wg.Done()
	for {
		select {
		case <-m.Ctx.Done():
			for {
				// Consume remaining
				select {
				case msg, ok := <-m.Progress:
					if !ok {
						return
					}
					m.program.Send(progressMsg{
						current: msg.Current,
						total:   msg.Total,
					})
				default:
					return
				}
			}

		case msg, ok := <-m.Progress:
			if !ok {
				return
			}
			m.program.Send(progressMsg{
				current: msg.Current,
				total:   msg.Total,
			})
		}
	}
}()

As you can see, we have an infinite for loop, where we call select. This is a reserved keyword used to randomly poll channels and handle the first that isn’t blocked—default will be triggered when all channels are blocked.

We separate two cases:

Either the context is done, and we must finish up;
Or we’re reading a Progress message.

We’ll block otherwise, as we do not have a default case.

When we receive a Progress message, we send progressMsg to our program, synchronously. When the context is done, we process all remaining Progress messages and then unblock and return with the default case. Once the goroutine returns, the wait group will signal that this task is done.

Due to the complexity of this workflow, we still have some issues where the progress bar terminates without updating completely, despite having reached 100%—use --debug if you need to confirm this is happening. It will be fixed in the future, perhaps for release v0.2.0! 😅

One Binary to Rule Them All
#

Finally, let’s close with something interesting about Go programs.

We often install Go apps using go install, and surely you have noticed that there is no go uninstall. This is because go install will download, build, and install a single command, usually copying the binary to ~/go/bin—which should be a part of your PATH. Uninstall can be done simply by deleting the binary, with rm ~/go/bin/<command>.

That said, in Go, we are able to embed files directly into our binary, which is perfect if we want to keep it in line with the installation approach I just described.

Embedding and Serving the Web UI
#

Our web UI is planned as a SvelteKit app, to be deployed as a static site. Our original approach to deploying this to production was to produce a Dockerfile.web that built the static site and deployed it using Nginx. But why do this when we can just embed the static site directly into our server library and serve it with http.FileServer? How hard can it be, right?

Well, as it turns out, it’s not hard at all:

//go:embed assets/**
var frontendFiles embed.FS

func NewWebServerDescriptor(host string, port uint16) *ServerDescriptor {
	slog.Info("web ui server", "host", host, "port", port)

	addr := fmt.Sprintf("%s:%d", host, port)

	contentFS := helper.Must(fs.Sub(frontendFiles, "assets"))
	httpFS := http.FS(contentFS)
	handler := http.FileServer(httpFS)

	server := http.Server{
		Addr:    addr,
		Handler: handler,
	}

	serverDescriptor := &ServerDescriptor{
		Name:   "Web UI",
		Server: &server,
	}

	return serverDescriptor
}

The previous code is from server/pkg/router/web.go. First, we need to make sure that the web/build directory is synced to server/pkg/router/assets/, which we have done using our Makefile, as described in a previous section, although this will have to change in the future, if we want to use go install.

Then, we simply define a variable with a special go:embed comment pointing to the assets directory. This comment is the magic sauce:

//go:embed assets/**
var frontendFiles embed.FS

Once set, we can access our files using fs.Sub, which returns an fs.FS instance, and serve them using http.FS, which returns an http.FileSystem instance. We pass this to an http.FileServer, which provides an HTTP handler that we can serve as usual.

That’s it! Pretty sweet, right?

We end up with a single 21 MiB binary that has it all—one binary to rule them all! 😎

❯ du -h bin/labstore
21M     bin/labstore

This binary provides the S3 and IAM server, the web UI server (no Nginx required), and the clients for S3 and IAM. And, next time, it will also provide the TUI for S3 and IAM! 🚀

Author

Data Lab Tech

https://youtube.com/@DataLabTechTV

Summary#

Taming the CLI#

Changes to the Codebase#

Centralizing Commands#

Using go work for Development#

Building and CI#

Linting with Pre-Commit#

GitHub Actions#

Makefile#

Using Cobra to Produce Commands#

Root Command#

Positional Arguments#

Run Hooks#

Annotations#

Flags and Subcommands#

Help Message#

Shell Autocompletion#

Managing Multiple HTTP Services#

Managing Client-Side Credentials#

First Look at TUI Design#

Color Palette#

Styling#

Generics and Type Constraints in Go#

Designing a Progress Bar Component#

Processing Update Events#

Running and Consuming Channels#

One Binary to Rule Them All#

Embedding and Serving the Web UI#
