LabStore - Part 3 - Building an Object Store in Go: Benchmarking and Profiling

Summary

#

Learn how to deploy multiple S3-compatible object stores, including LabStore, MinIO, Garage, SeaweedFS, and RustFS, using Docker Compose. Once the stack is running, you’ll learn how to benchmark throughput using warp by MinIO. You’ll also learn how to setup Go profiling, which we use in LabStore to help us identify bottlenecks and drive performance optimization. Everything is orchestrated with Just commands, split into two modules, infra for provisioning the Docker stack, and benchmark for running tests and analyzing throughput.

Follow this series with IllumiKnow Labs, and let’s see where this journey takes us. Hopefully you’ll learn a lot along the way!

Open Source S3 Object Stores

#

Deployment with Docker Compose

#

We selected the following S3-compatible object stores to benchmark alongside LabStore, just because these are the most discussed among the community:

• MinIO
• Garage
• SeaweedFS
• RustFS

We also considered Ceph with RADOS Gateway, but deployment was too costly in terms of time/effort, and it only really shines in a distributed scenario, which is not critical for us given the current stage of development for LabStore—we’re still at the MVP stage (or even pre-MVP). We also considered including Vitastor and Zenko CloudServer, but these aren’t as prevalent in online discussions, and we didn’t set to do an exhaustive analysis anyway.

Below, we cover the setup basics for each store, as a Docker Compose service, as well as a few setup details.

LabStore

#

Dockerfile

#

For LabStore, we only require the backend to be running for our benchmark. We have a Dockerfile.backend under infra/ that is split into two stages, one for building the Go project as a single binary, and another one to deploy the LabStore server.

For building the labstore-server binary, we use the Alpine-based golang image for the platform where we’re building the Go project, given by BUILDPLATFORM. We take two arguments, TARGETOS and TARGETACH with the target operating system and architecture to build the binary for. We copy go.mod and go.sum to the working directory and download all dependencies with go mod download. Finally, we copy the code and compile the binary for the target platform.

# =================
# Go builder
# =================

FROM --platform=$BUILDPLATFORM \
  golang:1.25-alpine3.22 AS builder

ARG TARGETOS
ARG TARGETARCH

WORKDIR /labstore/backend

COPY backend/go.mod backend/go.sum ./
RUN go mod download

COPY backend .

RUN GOOS=$TARGETOS GOARCH=$TARGETARCH go build \
  -o bin/labstore-server ./cmd/labstore-server

On the same Dockerfile.backend, we begin a second stage using Alpine, where we copy the binary from the previous builder stage. We create the appropriate labstore user and group, create a /data directory with the required ownership, that we exposed as a volume, switch to user labstore and set labstore-server as the entry point, making this usable in Docker Compose with any arguments that we’d like to use.

# =================
# LabStore backend
# =================

FROM alpine:3.22

COPY --from=builder \
  /labstore/backend/bin/labstore-server \
  /usr/local/bin/labstore-server

RUN addgroup -S labstore \
  && adduser -S labstore -G labstore

RUN mkdir /data
RUN chown -R labstore:labstore /data

VOLUME /data

USER labstore

ENTRYPOINT ["labstore-server"]

Service

#

Then, on our Docker Compose project, defined under infra/compose.yml, we build the infra/Dockerfile.backend image from the root of the repo, loading the environment variables from the labstore.yml config file via just and yq.

benchmark-labstore:
  profiles:
    - benchmark
  build:
    context: ..
    dockerfile: infra/Dockerfile.backend
  ports:
    - ${BENCHMARK_LABSTORE_PORT:-7789}:6789
  networks:
    - benchmark
  volumes:
    - benchmark-labstore:/data
  environment:
    - LABSTORE_SERVER_ADMIN_ACCESS_KEY=${BENCHMARK_STORE_ACCESS_KEY}
    - LABSTORE_SERVER_ADMIN_SECRET_KEY=${BENCHMARK_STORE_SECRET_KEY}
  command: serve --host 0.0.0.0 --port 6789 --storage-path /data
  restart: unless-stopped

We use the following environment variables:

• BENCHMARK_LABSTORE_PORT, which defaults to 6789, but can be set to overwrite this.
• BENCHMARK_STORE_ACCESS_KEY and BENCHMARK_STORE_SECRET_KEY to set the user and password for admin.

Note that LABSTORE_SERVER_STORAGE_PATH, despite being available in our config, is ignored for the Docker service, defaulting to /data, as set by --storage-path, and being exposed as a mountable volume instead. It’s the same with LABSTORE_SERVER_HOST which is set to 0.0.0.0 so that Docker can expose the service, and LABSTORE_SERVER_PORT, which is set to a hardcoded port, since we’re exposing it anyway.

MinIO

#

As there are no security dependencies for running a benchmark, we rely on the latest Docker image release for MinIO that was provided as a build by MinIO: RELEASE.2025-09-07T16-13-09Z. We use the default port 9000 to expose the S3-compatible API, and exposed the UI port as well, but this is not required for the benchmark.

benchmark-minio:
  profiles:
    - benchmark
    - testing
  image: minio/minio:RELEASE.2025-09-07T16-13-09Z
  ports:
    - ${BENCHMARK_MINIO_PORT:-9000}:9000
    - 9001:9001
  networks:
    - benchmark
    - testing
  volumes:
    - benchmark-minio:/data
  environment:
    - MINIO_ROOT_USER=${BENCHMARK_STORE_ACCESS_KEY}
    - MINIO_ROOT_PASSWORD=${BENCHMARK_STORE_SECRET_KEY}
  command: server /data --console-address ":9001"
  healthcheck:
    test: [
      "CMD", "curl", "-f",
      "http://localhost:9000/minio/health/live"
    ]
    interval: 10s
    retries: 5
  restart: unless-stopped

We use the following environment variables:

• BENCHMARK_MINIO_PORT to optionally set a different port for MinIO.
• BENCHMARK_STORE_ACCESS_KEY and BENCHMARK_STORE_SECRET_KEY to set the user and password for admin.

Garage

#

Configuration

#

In order to make it easier to deploy on a remote Docker context, we also built a custom image to bundle the preconfigured garage.toml. The alternative would have been to manually copy over this file into the Docker host machine, so that we could mount it using Docker Compose. However, since our Docker VMs are to remain accessible only via the Docker API, this wasn’t compatible with our home lab workflow, and so that option was discarded.

Our garage.toml looks like this:

metadata_dir = "/var/lib/garage/meta"
data_dir = "/var/lib/garage/data"
db_engine = "sqlite"
metadata_auto_snapshot_interval = "6h"

replication_factor = 1
compression_level = 2

rpc_bind_addr = "[::]:3901"
rpc_public_addr = "localhost:3901"
rpc_secret = "6864f83ced8f82b688eabfd49ce67687892776908e3f8d4714..."

[s3_api]
s3_region = "eu-west-1"
api_bind_addr = "[::]:3900"
root_domain = ".s3.domain.com"

[s3_web]
bind_addr = "[::]:3902"
root_domain = ".web.domain.com"
index = "index.html"

[admin]
api_bind_addr = "[::]:3903"
admin_token = "0p0Au4l6WWRCV9EUNd+cdEu1Sy+16ez2ZGrtWa0EZnQ="
metrics_token = "MNguY7hRyQ2sMdCSrfm8KCSKEKtLx+IjMwFsRvRh5gE="

Remember to keep the rpc_secret, as well as the admin_token and metrics_token safe for production environments. For our use case this is not relevant, as this deployment is purely for benchmarking.

We build a custom Docker image with this configuration, as follows:

FROM dxflrs/garage:v2.1.0
COPY infra/garage.toml /etc/garage.toml

Compose Service

#

benchmark-garage:
  profiles:
    - benchmark
  build:
    context: ..
    dockerfile: infra/Dockerfile.garage
  networks:
    - benchmark
  volumes:
    - benchmark-garage:/var/lib/garage
  ports:
    - ${BENCHMARK_GARAGE_PORT:-3900}:3900
    - 3901:3901
    - 3902:3903
    - 3903:3903
  restart: unless-stopped

We use the following environment variables:

• BENCHMARK_GARAGE_PORT to optionally set a different port for the Garage S3 API.

Notice we don’t use BENCHMARK_STORE_ACCESS_KEY and BENCHMARK_STORE_SECRET_KEY here, as Garage doesn’t support specifying credentials for an admin user.

Initialization

#

Like we said, Garage was the only S3-compatible object store, out of those that we tested, that did not provide an easy setup process for testing. As such, we were required to implement a just command named garage-init to take care of:

1. Layout setup (single node with enough space).
2. Access key creation (credentials for benchmarking).
3. Benchmark bucket creation (warp-benchmark-bucket).
4. Read/write permission granting.

Creating an access key on Garage doesn’t let you specify the key ID or secret key, since this must be generated by Garage directly. Since we rely on shared credentials for the whole benchmark process (BENCHMARK_STORE_ACCESS_KEY and BENCHMARK_STORE_SECRET_KEY), we had to set up a separate benchmarking procedure for Garage.

Garage should definitely make it easier to setup their object store for testing, providing environment variables to configure an initial admin user, like the other object stores do, and granting it permissions to create buckets, as well as to read and write to all buckets by default.

You can find the working implementation for just benchmark garage-init over here, but here’s the basic workflow we’re trying to reproduce (assume garage is in the PATH and this is the first run):

node_id=$(garage status 2>/dev/null \
	| tail -n1 | awk '{print $1}')

garage layout assign $node_id \
	--capacity 5G -z "eu-west-1"
garage layout apply --version 1

create_key_output=$(garage key create admin 2>/dev/null)

store_access_key=$(printf "%s\n" "$create_key_output" \
	| grep "Key ID:" | awk '{print $3}')

store_secret_key=$(printf "%s\n" "$create_key_output" \
	| grep "Secret key:" | awk '{print $3}')

garage bucket create "warp-benchmark-bucket"

garage bucket allow --read --write --owner \
	"warp-benchmark-bucket" --key "$store_access_key"

Once the initialization is done, we use a separate just command named garage that is similar to the remaining benchmarking commands, but uses the created credentials (store_access_key and store_secret_key) instead of the shared credentials set globally for the whole benchmark process. We’ll describe the benchmarking approach in the next major section.

SeadweedFS

#

Unlike Garage, SeaweedFS offers a single convenience server command that takes care of starting the master, volume, filer and s3 gateway servers, the latter only when -s3 is specified. At first, we were setting up separate compose services for each of these components, which is also an option for a proper production setup, but we ended up following the easier route, once we found the server command.

This is how we setup the compose service, which will expose the S3 API on port 8333 (we ignore the remaining ports during benchmarking):

benchmark-seaweedfs:
  profiles:
    - benchmark
  image: chrislusf/seaweedfs:4.00
  networks:
    - benchmark
  volumes:
    - benchmark-seaweedfs:/data
  ports:
    - 9333:9333
    - 8080:8080
    - 8888:8888
    - ${BENCHMARK_SEAWEEDFS_PORT:-8333}:8333
  environment:
    - AWS_ACCESS_KEY_ID=${BENCHMARK_STORE_ACCESS_KEY}
    - AWS_SECRET_ACCESS_KEY=${BENCHMARK_STORE_SECRET_KEY}
  command: server -dir=/data -s3 -s3.port=8333
  restart: unless-stopped

We use the following environment variables:

• BENCHMARK_SEAWEEDFS_PORT to optionally set a different port for the SeaweedFS S3 API.
• BENCHMARK_STORE_ACCESS_KEY and BENCHMARK_STORE_SECRET_KEY to set the user and password for admin.

RustFS

#

For RustFS we hit a snag, where we had to switch the CPU type to host on the Proxmox Docker VM, otherwise it would complain about not finding SSE4.1 and PCLMULQDQ. The CPU type we were using before was a preset called x86-64-v2-AES that did list SSE4.1, but not PCLMULQDQ. The Docker VM had to be rebooted to apply the changes and enable the new CPU type, but we also had to destroy and recreate the RustFS service for it to stop complaining about the missing CPU features.

While using the appropriate CPU flags for optimization is ideal—and, in all fairness, these have been around for over 15 years now—RustFS might benefit from proper runtime checks, as the Docker image shouldn’t fail to run as long as the architecture matches.

Either way, once this was fixed, we deployed RustFS as follows, exposing port 9000 as 10000 to avoid colliding with MinIO (we ignored the UI port 10001 during benchmarking):

benchmark-rustfs:
  profiles:
    - benchmark
  image: rustfs/rustfs:1.0.0-alpha.69
  ports:
    - ${BENCHMARK_RUSTFS_PORT:-10000}:9000
    - 10001:9001
  networks:
    - benchmark
  volumes:
    - benchmark-rustfs:/data
  environment:
    - RUSTFS_ACCESS_KEY=${BENCHMARK_STORE_ACCESS_KEY}
    - RUSTFS_SECRET_KEY=${BENCHMARK_STORE_SECRET_KEY}
    - RUSTFS_CONSOLE_ENABLE=true
  restart: unless-stopped

We use the following environment variables:

• BENCHMARK_RUSTFS_PORT to optionally set a different port for the RustFS.
• BENCHMARK_STORE_ACCESS_KEY and BENCHMARK_STORE_SECRET_KEY to set the user and password for admin.

Benchmarking with Warp

#

Benchmarking was implemented using warp, by MinIO, and results analyzed using DuckDB, with everything orchestrated using just. We created a top-level project under benchmark/ inside our LabStore monorepo (see the release/backend/v0.1.0 branch, if unreleased). All infrastructure was deployed on a remote Docker host running inside a Proxmox VM with 2 vCPUs, 10 GiB of RAM, and 1 Gbps Ethernet.

Just Commands

#

In order to run the benchmark process, we first need to ensure we have deployed the required infrastructure using Docker, by running just infra benchmark-up from the root of the repo. This will provision the Docker Compose services described in the previous sections.

Then, from the root of the repo, running just benchmark all will trigger the benchmark process. This will measure the available bandwidth using iperf3, via the bandwidth command, and then run the benchmark for LabStore, MinIO, Garage, SeaweedFS, and RustFS, in this order, via the stores command. Both bandwidth and stores will produce several JSON output files that we then process using DuckDB via the analysis command. The output will be the ranking tables for DELETE, GET, PUT, and STAT requests, as we run warp in mixed mode, followed by a termgraph plot, both based on the median objects per second, processed for each request.

Results

#

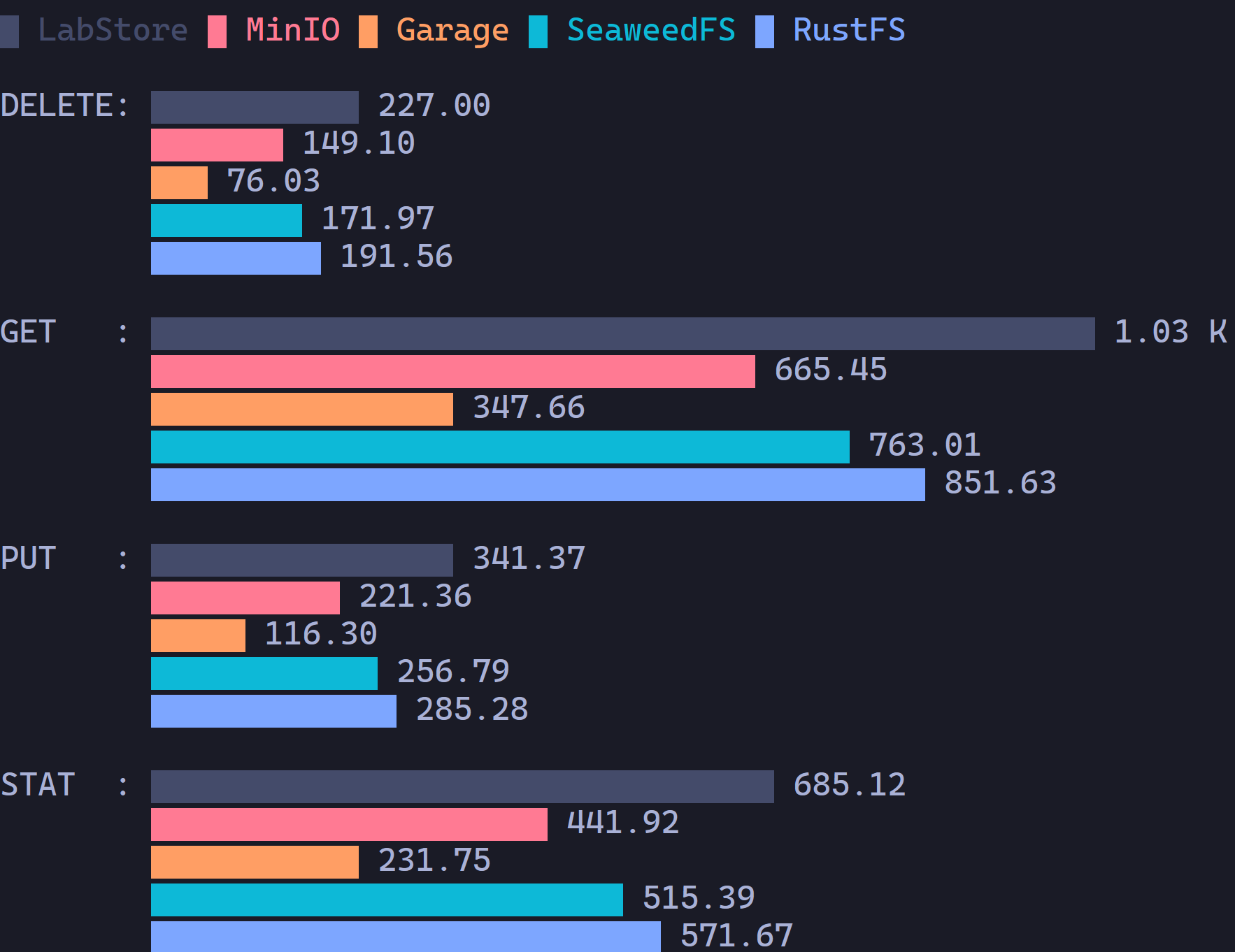

Here are the results, depicting the median for processed objects per second for each operation.

As we can see, LabStore is ranked first for all four operations, but please read on for a more critical insight. Below, we provide a more detailed view, including median bandwidth in MiB/s and percentages of bandwidth used. Please note that an operation is randomly picked during benchmarking, with the following assigned probabilities:

• DELETE: 10%
• GET: 45%
• PUT: 15%
• STAT: 30%

As such, there might not be enough requests of a given type to exhaust the available bandwidth. Nevertheless, this is helpful for understanding efficiency and ranking the object stores. Regardless, in the tables below, we use Median Objects per Second for ranking, as bandwidth is not always available.

DELETE

#

GET

#

PUT

#

STAT

#

Final Results

#

As we can see, the rankings for all operations are in agreement, positioning the object stores as follows, in terms of single node/drive performance, under Docker:

1. LabStore
2. RustFS
3. SeaweedFS
4. MinIO
5. Garage

LabStore’s Performance

#

Wait, did LabStore, an object store written in Go, just beat RustFS?! Well… Let’s be fair. A few notes on this to follow.

First of all, with LabStore, we’re still early days. This means that, feature-wise, we aren’t nearly as complete as the competition, which might explain why we blasted through the rankings to first place. Keep in mind that most of the other object stores in the benchmark implement a lot more features than we do, which will surely add some overhead. For example, handling permissions and policies will require some sort of database to be queried, as well as proper security, so maybe next week RustFS will have us beat, when we add a basic IAM layer.

Regardless, this is a pretty sweet start to the project, and it shows that Go can compete with Rust, definitely beat it in development flow—debugging, compilation time, etc. At this stage, I’m looking back less and less, having decided to pick Go as the language for this project.

Profiling in Go

#

It’s fairly easy to setup profiling in Go, using pprof, as this is provided as part of the Go tooling, via go tool pprof.

The required steps were the following:

1. Add profiling support to LabStore, enabling it through a CLI flag (we use --pprof).
2. Launch labstore-server with profiling enabled, and run go tool pprof for our module, to capture data over 60 seconds, and expose the results via a web ui on port 8081.
3. Simultaneously trigger the benchmark, right after pprof is launched, to simulate service load.

Once the benchmark runs, we are able to explore the corresponding profiling results, to help us identify the time spent on each part of our code. A profiler is a tool as fundamental as a debugger, when performance matters (e.g., web services, databases, search engines, etc.).

Below we detail each of the previous three steps, showing the output from pprof, after running warp in mixed mode for benchmarking.

In-Code Profiler Support

#

The profiler is started using a goroutine that is a part of our code. The following snippet illustrates the main code that enables profiling in Go using pprof:

import (
	_ "net/http/pprof"
)

func (profiler *Profiler) Start() {
	slog.Info("starting pprof profiler", "port", profiler.Port)

	go func() {
		addr := fmt.Sprintf("%s:%d", profiler.Host, profiler.Port)
		fmt.Printf("🕵️‍♂️ Profiler listening on http://%s\n", addr)
		log.Fatal(http.ListenAndServe(addr, nil))
	}()
}

You can find the full code to instance and start a profiler in LabStore here.

That code is run from the root command in labstore-server, whenever the --pprof flag is set, based on the following block of code:

run_pprof := helper.Must(cmd.Flags().GetBool("pprof"))

if run_pprof {
	pprof_host := helper.Must(cmd.Flags().GetString("pprof-host"))
	pprof_port := helper.Must(cmd.Flags().GetInt("pprof-port"))

	pprof := profiler.NewProfiler(
		profiler.WithHost(pprof_host),
		profiler.WithPort(pprof_port),
	)

	pprof.Start()
}

You can find the full code for the labstore-server root command here.

Running App with Profiling

#

In order to run the profiler, we need to launch the following two commands.

First, we run labstore-server serve, passing it the --pprof flag so that the goroutine opens a secondary profiling service, exposed on port 6060 by default, while LabStore will run on port 6789 by default as usual:

bin/labstore-server --pprof serve

Then, we run go tool pprof, pointing it to the module that we want to focus on (our backend), setting the web ui port to 8081—this will open automatically once data capturing ends—and pointing it to the pprof service that we implemented on LabStore as described above—the query parameter seconds will determine how long the profiler will capture data before opening the web ui to display the results:

go tool pprof \
	-focus=github.com/IllumiKnowLabs/labstore/backend \
	-http=:8081 \
	http://localhost:6060/debug/pprof/profile?seconds=60

In LabStore, we conveniently implement this process as a single Makefile target:

profile: backend
	npx concurrently \
		-n backend,pprof \
		-c blue,red \
		"$(BACKEND_CMD) --pprof serve" \
		"go tool pprof \
			-focus=github.com/IllumiKnowLabs/labstore/backend \
			-http=:8081 \
			http://localhost:6060/debug/pprof/profile?seconds=60"

This relies on the concurrently CLI tool (via npm) to run LabStore’s backend with profiling enabled, in parallel with Go’s built-in pprof tool to capture and inspect performance data.

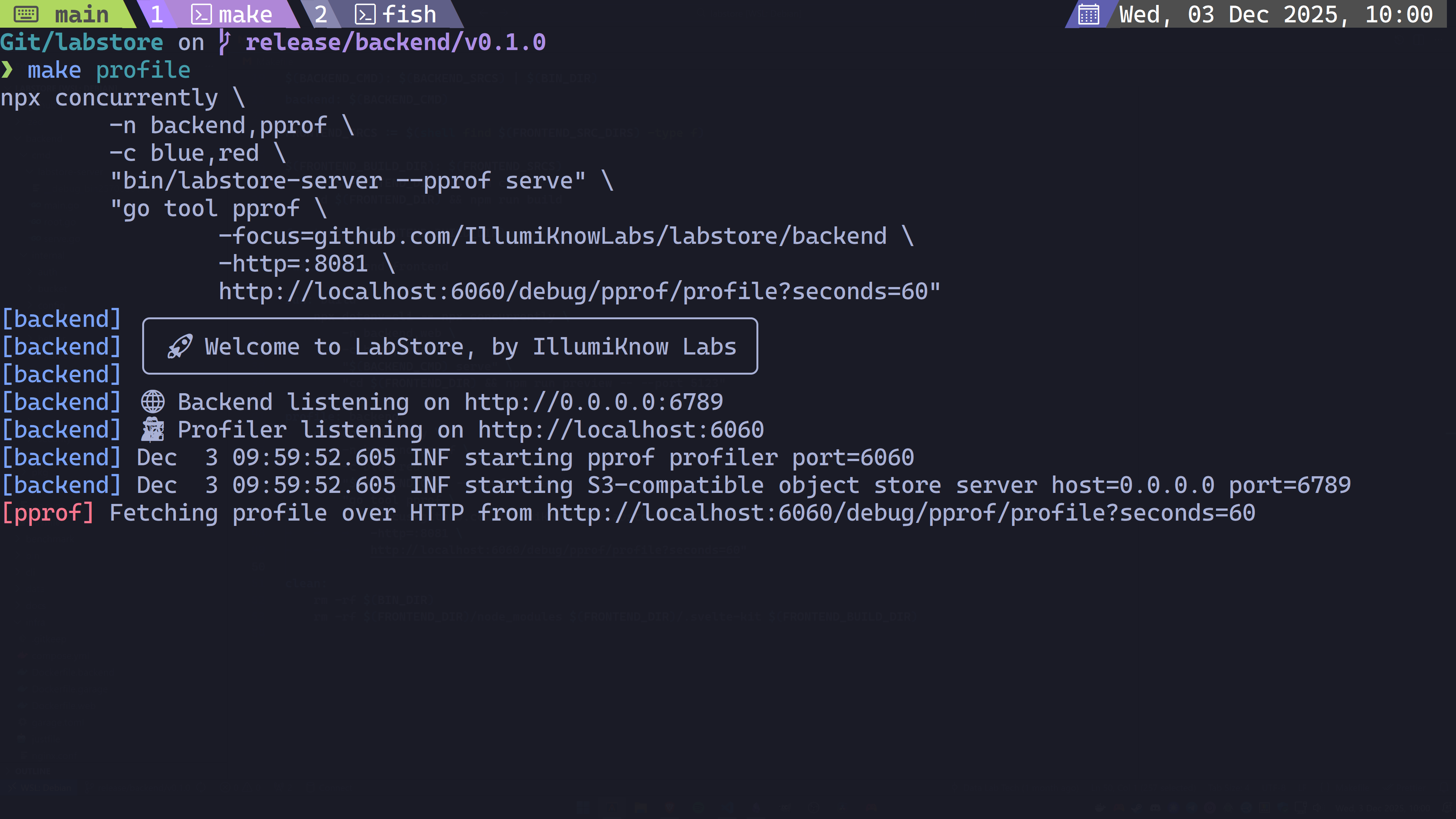

So we can simply run the profiler for 60 seconds with:

make profile

Triggering the Benchmark

#

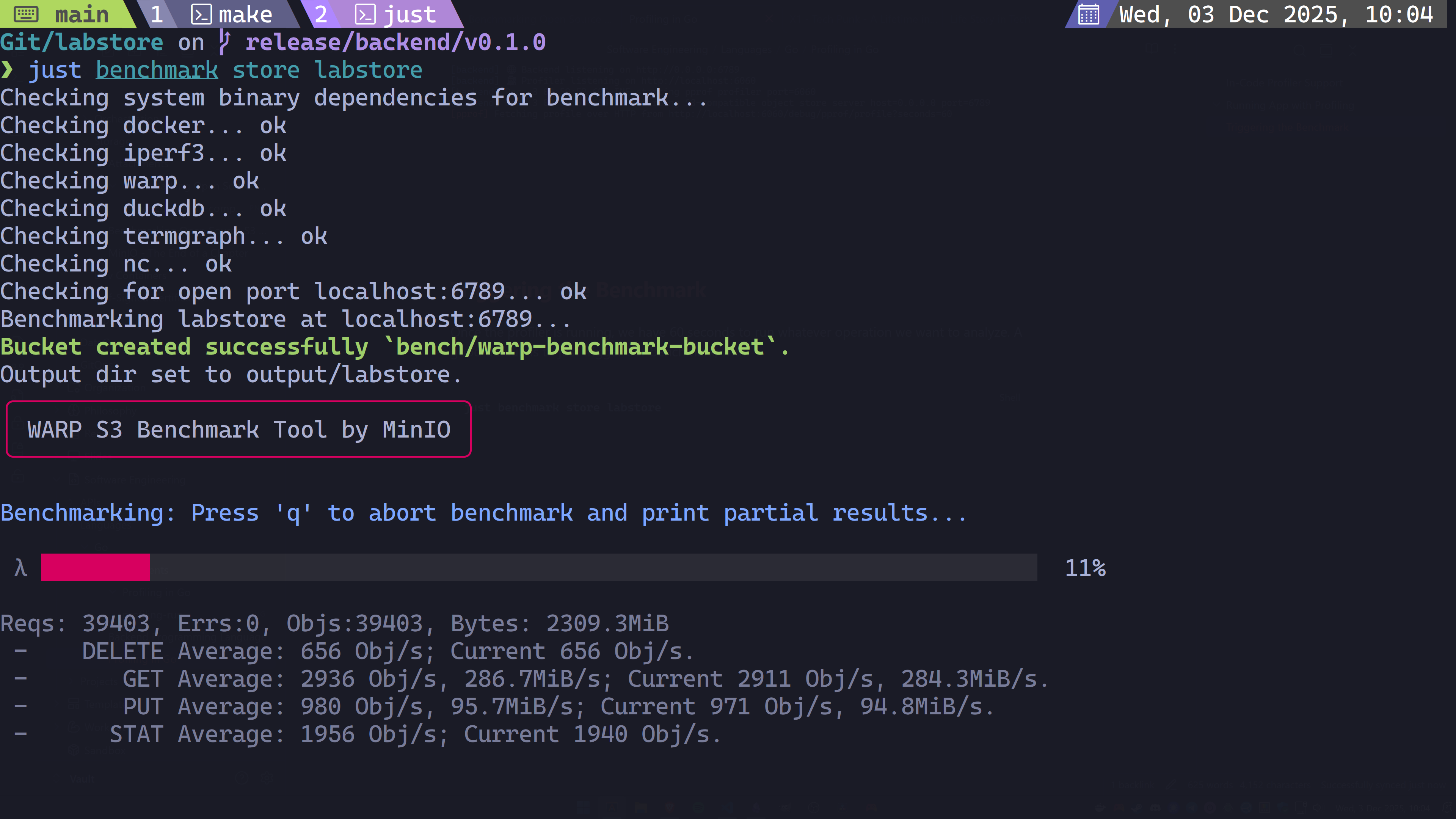

Once the profiler is running, we have 60 seconds to run whatever operation we want to analyze. A good default is to just trigger our benchmark, with:

just benchmark store labstore

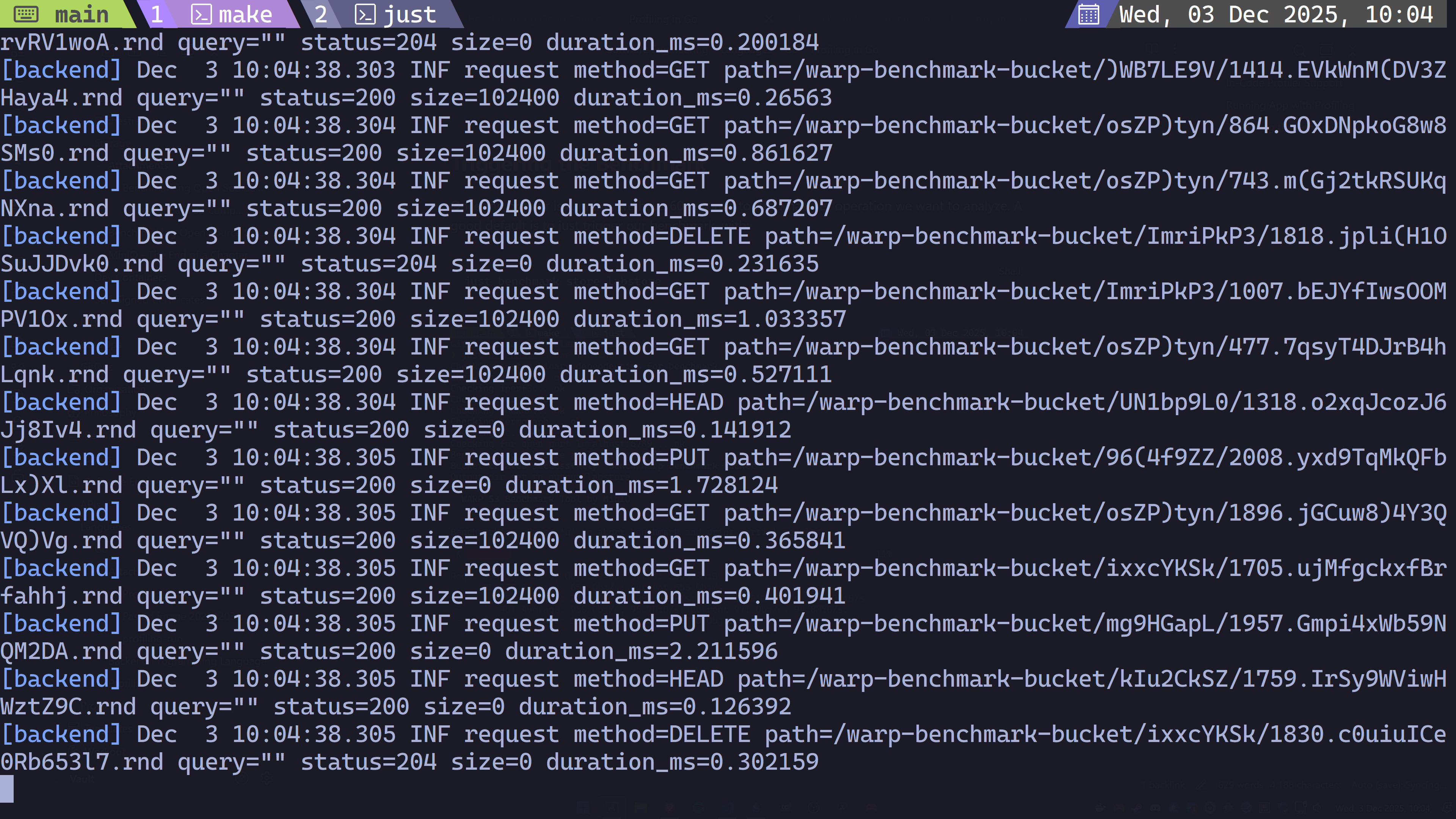

You should see the access log for LabStore rapidly scrolling with DELETE, GET, PUT, and HEAD (STAT) requests, from within the terminal where you ran make profile:

Inspecting Results

#

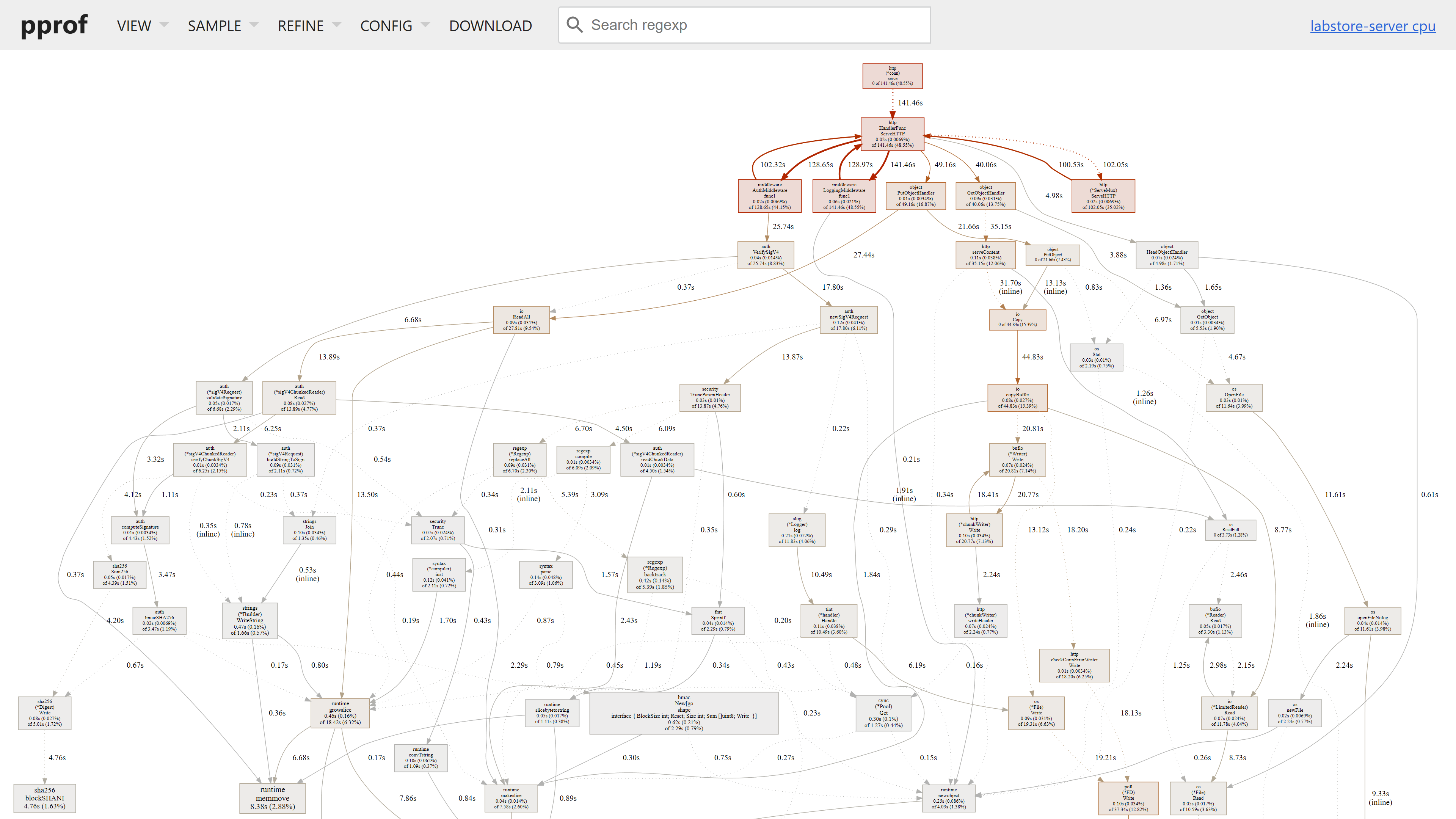

Once the 60 seconds are up, the web ui for pprof should open automatically in your browser, on the specified port 8081, displaying the graph view by default:

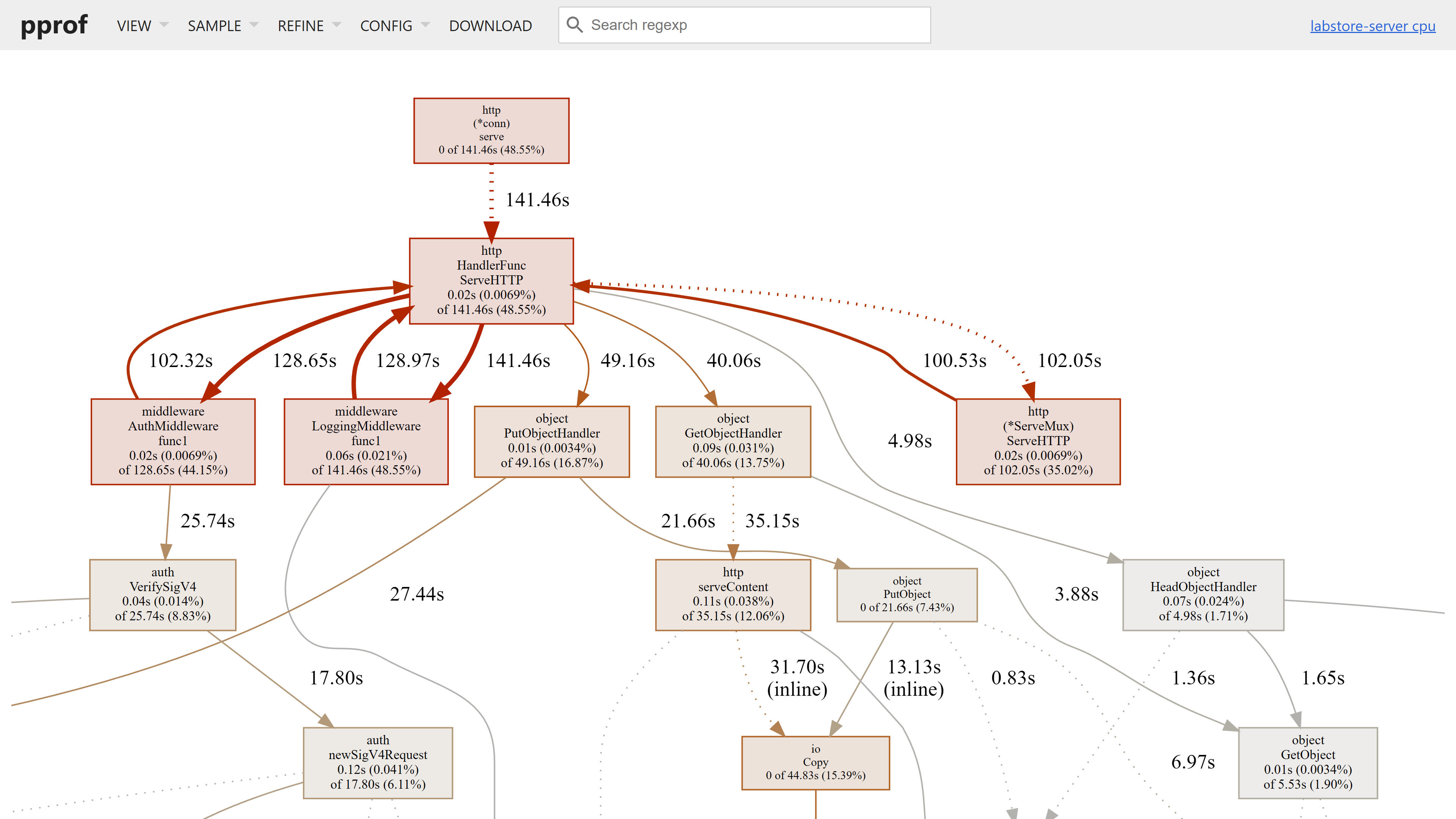

This will display a node per function in your app, with arrows representing function calls and the total time spent in the subroutine. Each node is annotated with the package and function name, alongside the flat time spent directly inside that function (excluding subroutines), as well as the cumulative time spent in the function (including subroutines). For example, in our case, we see that we spend a lot of time in LoggingMiddleware and AuthMiddleware, and that the PutObjectHandler is slightly less efficient than the GetObjectHandler.

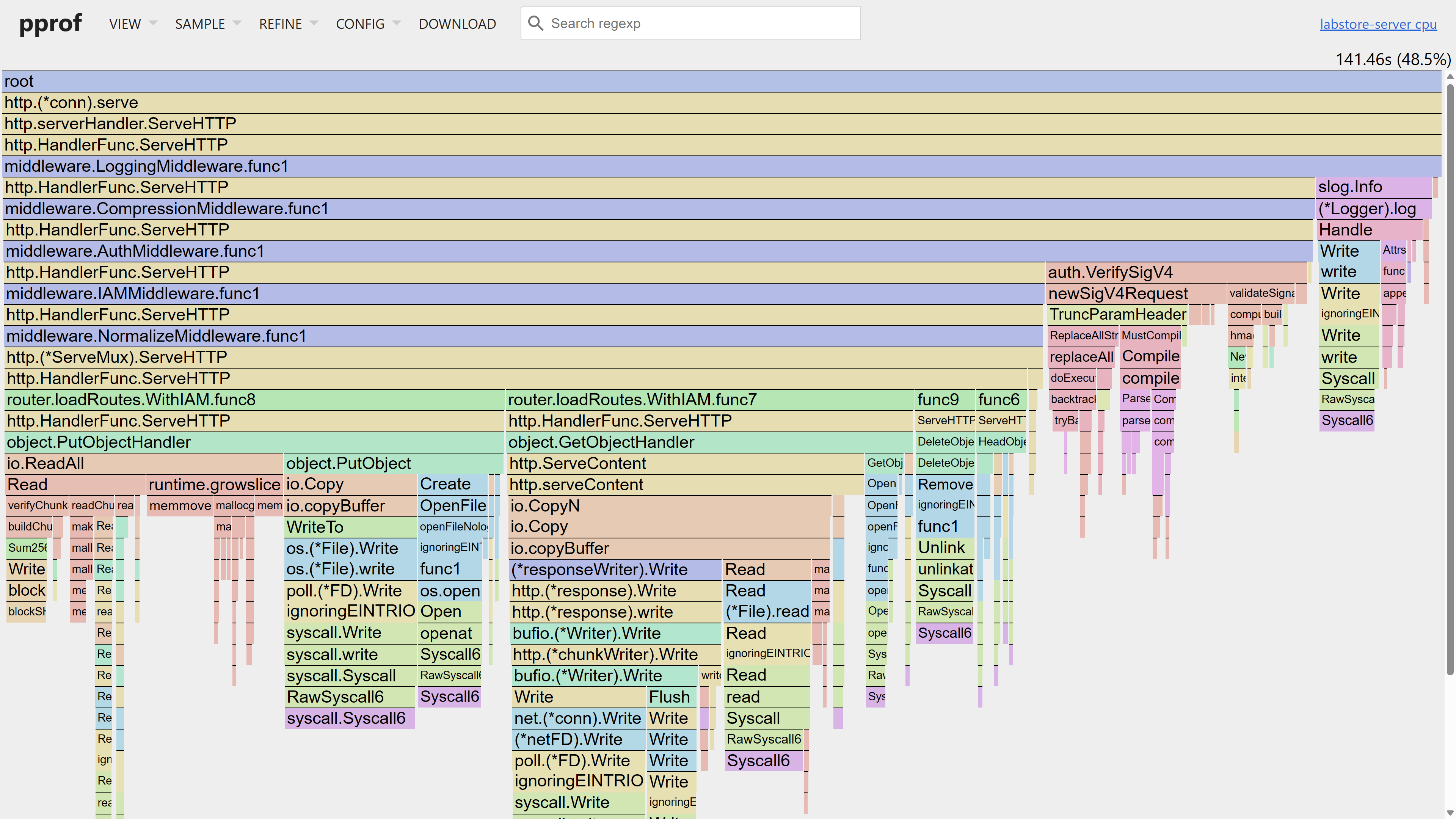

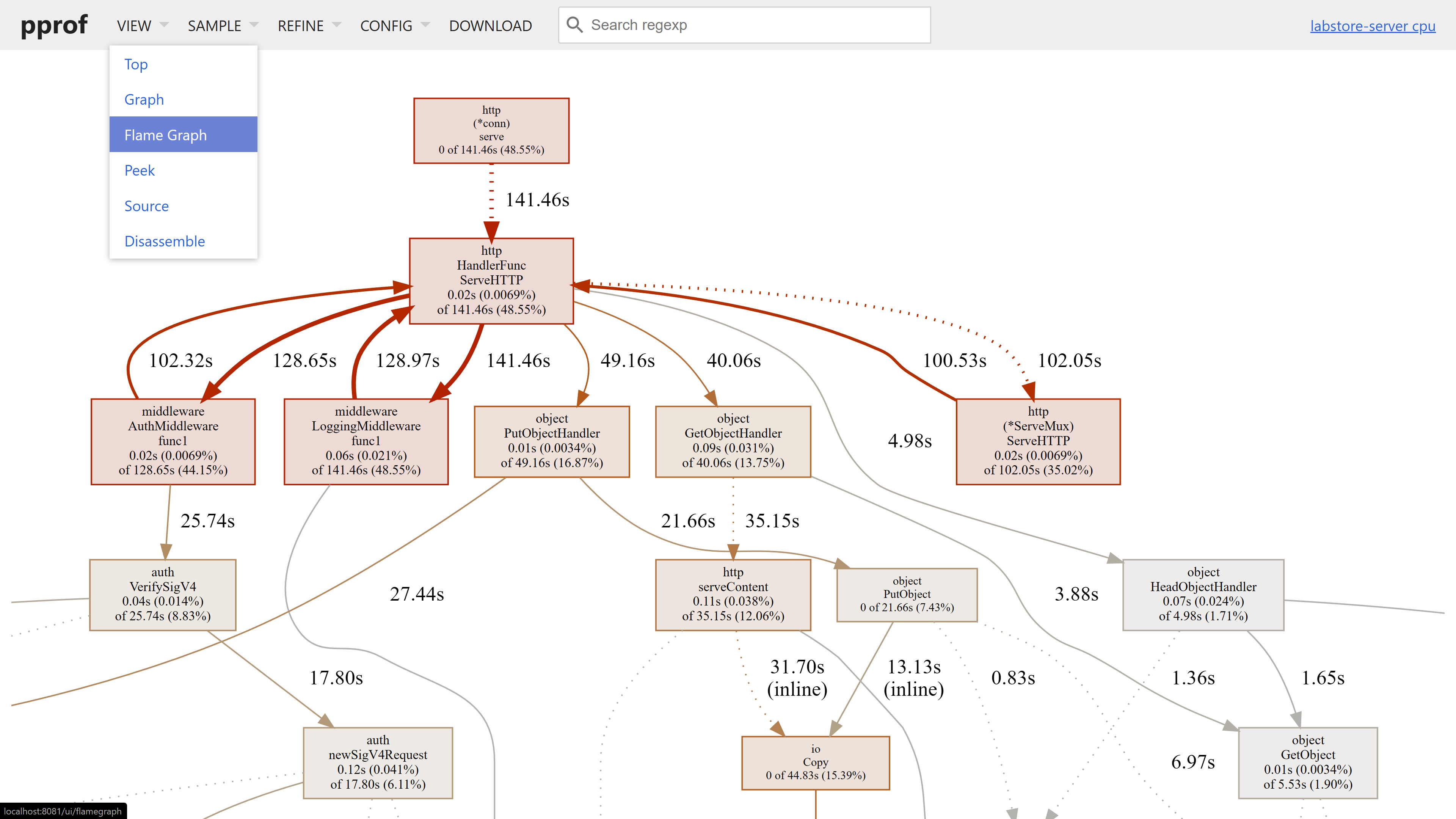

However, a better way to understand how time is spent per function is perhaps the flame graph view, which we can access from the VIEW dropdown menu:

This view will clarify why the middleware was using so much time, as it becomes clearer that, despite LoggingMiddleware making a few calls to slog.Info, and AuthMiddleware spending some time running auth.VerifiySigV4, most of the time spent in both middleware routines is used in request handlers, PutObjectHandler, GetObjectHandler, DeleteObjectHandler, and HeadObjectHandler, in this order. However, it is also clear that a major slice of time is spent authenticating with SigV4, as well as in logging—in total, both take more time than either DELETE or HEAD requests together.

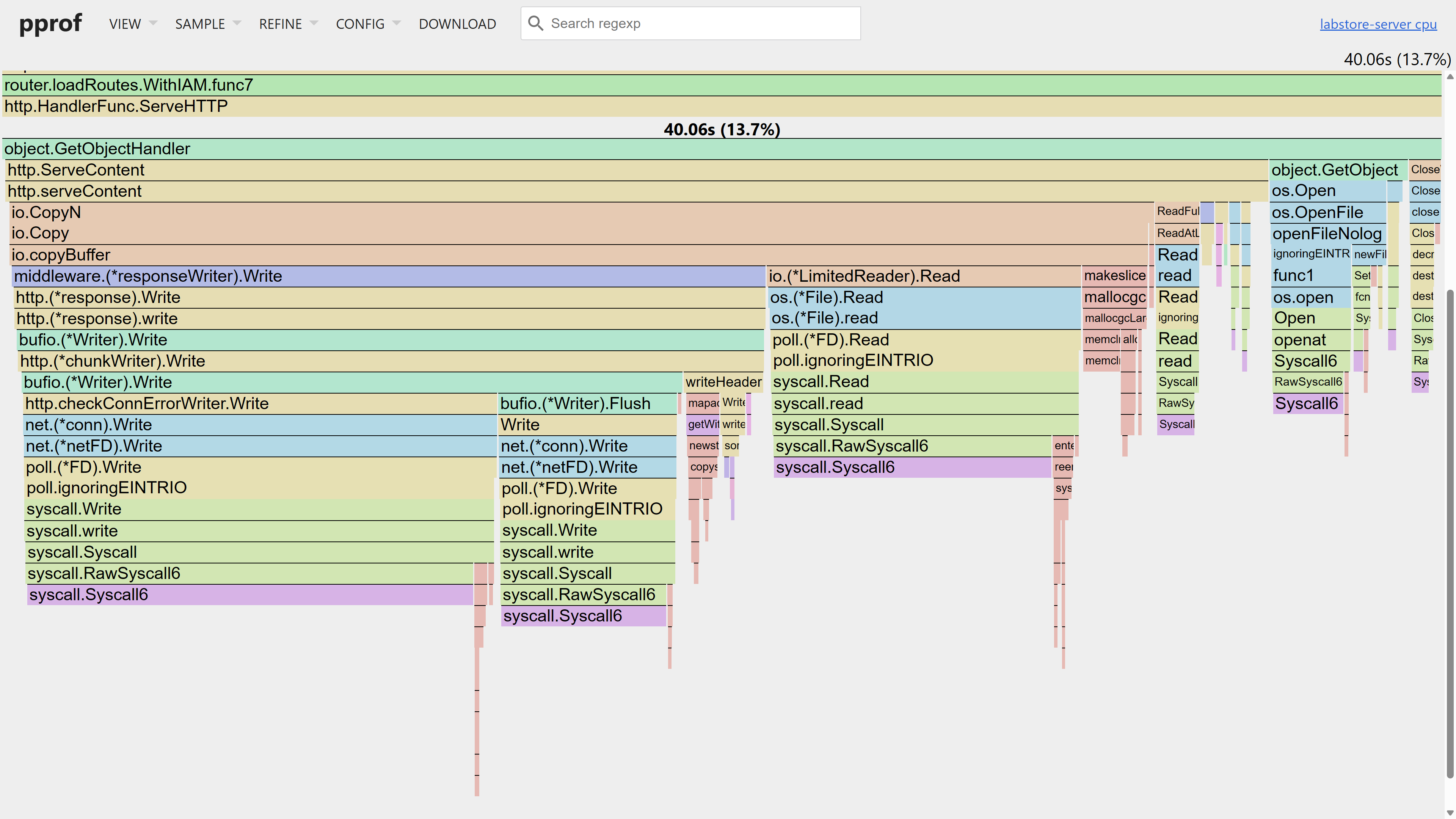

And we can keep drilling down into each function by clicking the corresponding node. For example, we might look at GetObjectHandler in more detail:

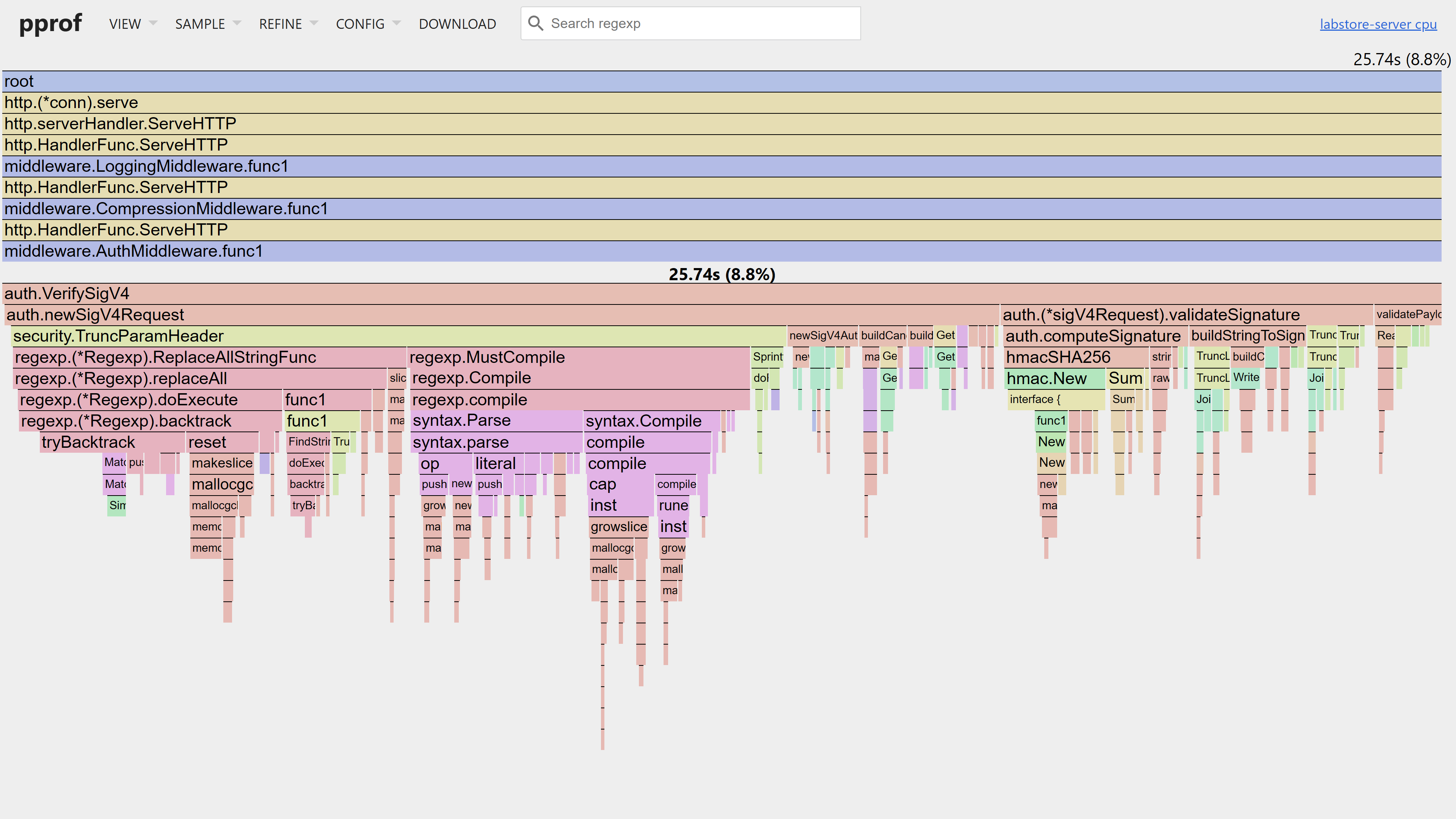

Or try to understand why auth.VerifySigV4 is using so much time to run:

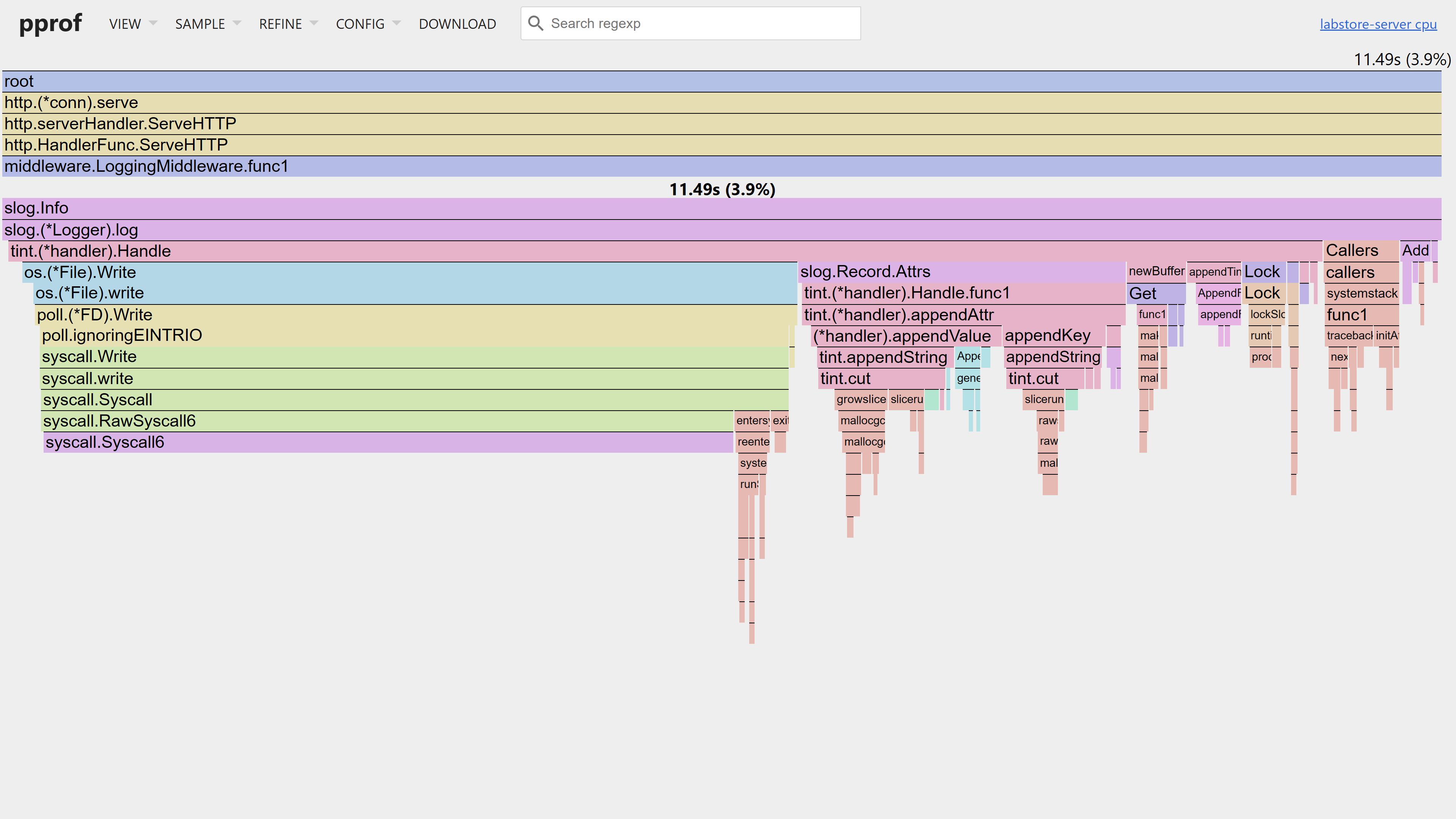

Or do the same for slog.Info:

And we can click the root node at the top, to go back to the original view.

By looking at the three drilldown views above, it becomes clear that:

• GetObjectHandler is spending most of its time with I/O operations, which likely represent a hardware bottleneck rather than a design limitation, so there’s little we can do here, other than increasing our bandwidth or disk I/O speed, which are not the code-centric solutions, so there’s little to improve here, performance wise.
• auth.VerifySigV4, on the other hand, is spending way too much time on security.TruncParamHeader, which is a utility function to mask secrets in HTTP headers, currently used just for logging at a DEBUG level. As such, this can definitely be improved by lazily calling this function only when the logger is required to run! 💡
• slog.Info is spending most of its time with the log handler, specifically writing to the standard output. We might tackle this through async logging, or by using a different handler that is more efficient out-of-the-box. Also, we’ll need to test how much overhead the tint handler is introducing, and maybe just say goodbye to coloring, or at least make it optional.

Whatever the approach is to fixing performance, at least now we know our bottlenecks, and we’re not driving blindly anymore! Remember that the simple act of running a profiler might help you identify several easy-to-fix bottlenecks that you can mitigate with little to no cost in terms development time, so always, ALWAYS have a profiler ready to go.
